More mesh per container
Tight uniform coils cut shipping volume.

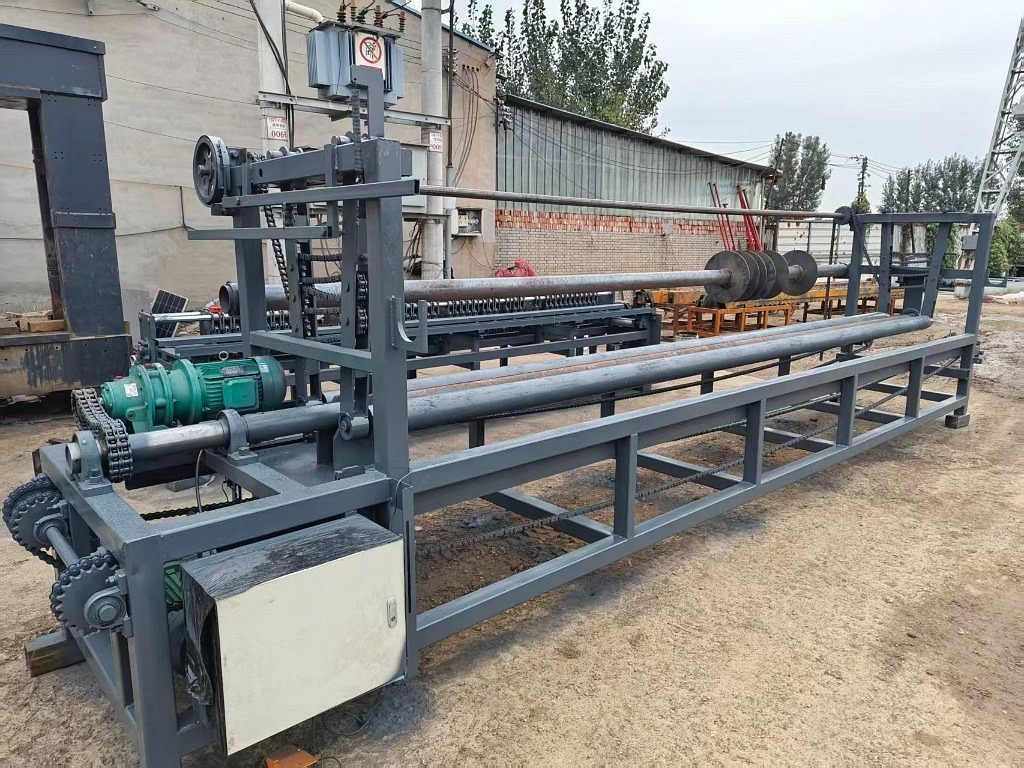

Gabion Mesh Roll Winding Machine
Winds finished mesh into tight coils — more panels per container.
Also known as: mesh coiling machine · mesh roll winder · gabion roll-up machine
- Working width
- 5,500 mm
- Model dimensions (L × W × H)
- 6500 × 1500 × 2000 mm
- Machine weight
- 2 t
Overview
Mesh is bulky and bulky mesh is expensive to move. This machine compresses it into a tight coil at a controlled inner diameter. Winding tension is adjustable — too tight puts a permanent set in the wire, too loose and the coil collapses in transit.
Why this machine, and not the cheapest one on the market
02
Adjustable tension
Holds the coil without setting the wire.
03
Controlled coil diameter
Mandrel matches your handling equipment.
04
Runs inline
Sits at the end of the line behind the shear.
Common questions
All FAQsIs the mesh winder limited by mesh opening or wire diameter?
No. Mesh winding is not limited by mesh opening or wire diameter.
Can it be built for our power supply and language?
Yes. Electrical panels are configured for your voltage and frequency, and the control interface language is set at build time to match your operators.
What is the lead time and how is it shipped?
Lead time is confirmed in writing with your quotation. Machines are packed for sea freight, loaded with photographic records and shipped with the documentation your broker needs.
Request a quotation for the Gabion Mesh Roll Winding Machine
Send your mesh opening, wire diameter and output target — machine configuration and price back within 12 working hours.
